Kuvaus
Matshin subwoofer elementti jossa on neljä kappaletta 3 ohmin puhekeloja. Erinomainen vaihtoehto Matchin Plug & Play-vahvistinten subwoofer-kanavalle.

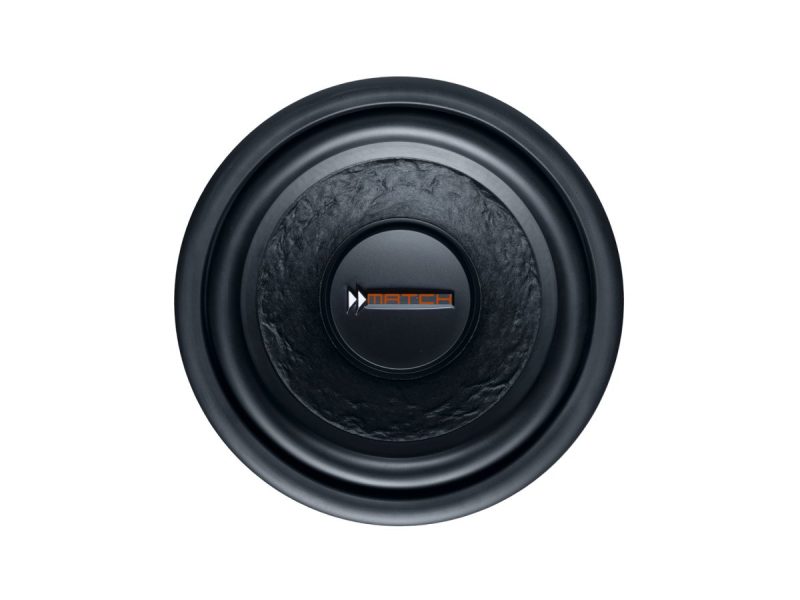

• 8″ subwoofer
• 4 x 3 Ohm
• 400W
99.00 € sis alv25,5%
Pyydä tarjous! Pyyntihinta ei ole välttämättä myyntihinta ;)
Vain 3 varastossa
Matshin subwoofer elementti jossa on neljä kappaletta 3 ohmin puhekeloja. Erinomainen vaihtoehto Matchin Plug & Play-vahvistinten subwoofer-kanavalle.
| Paino | 3.16 kg (kilogramma) |
|---|---|
| Tekniset tiedot | Power RMS / max. P 200 / 400 Watts Impedance Z 4 x 3 Ω DC resistance Re 4 x 2.7 Ω Resonance frequency Fs 37 Hz Mechanical Q factor Qms 5.40 Electrical Q factor Qes 0.57 Total Q factor Qts 0.51 Compliance Cms 341 µm/N Equivalent air volume Vas 23 L Force factor B*I 7.5 Tm Efficiency 1 W / 1 m SPL 87 dB Cone area Sd 222 cm² Moving mass Mms 53 g Cone material Hand-scooped paper cone Mechanical resistance Rms 3.3 kg/s Voice coil diameter ø 50.8 mm Voice coil winding height 21 mm Max. linear excursion Xmax +/- 6.5 mm Outer diameter ø 212 mm / 8.35" Installation diameter ø 183 mm / 7.2" Installation depth 105 mm / 4.1" Recommended enclosure volumes Sealed box Net volume – Lower limiting frequency (-3dB) – Vented box Net volume 10 L Port diameter ø 60 mm / 2.36" Port area 28 cm² Port length 25 cm / 9.84" Port tuning frequency Fb 47 Hz Lower limiting frequency (-3dB) 45 Hz. |
Power RMS / max. P 200 / 400 Watts
Impedance Z 4 x 3 Ω
DC resistance Re 4 x 2.7 Ω
Resonance frequency Fs 37 Hz
Mechanical Q factor Qms 5.40
Electrical Q factor Qes 0.57
Total Q factor Qts 0.51
Compliance Cms 341 µm/N
Equivalent air volume Vas 23 L
Force factor B*I 7.5 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area Sd 222 cm²
Moving mass Mms 53 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms 3.3 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 21 mm
Max. linear excursion Xmax +/- 6.5 mm
Outer diameter ø 212 mm / 8.35″
Installation diameter ø 183 mm / 7.2″
Installation depth 105 mm / 4.1″
Recommended enclosure volumes
Sealed box
Net volume -
Lower limiting frequency (-3dB) -
Vented box
Net volume 10 L
Port diameter ø 60 mm / 2.36″
Port area 28 cm²
Port length 25 cm / 9.84″
Port tuning frequency Fb 47 Hz
Lower limiting frequency (-3dB) 45 Hz.
