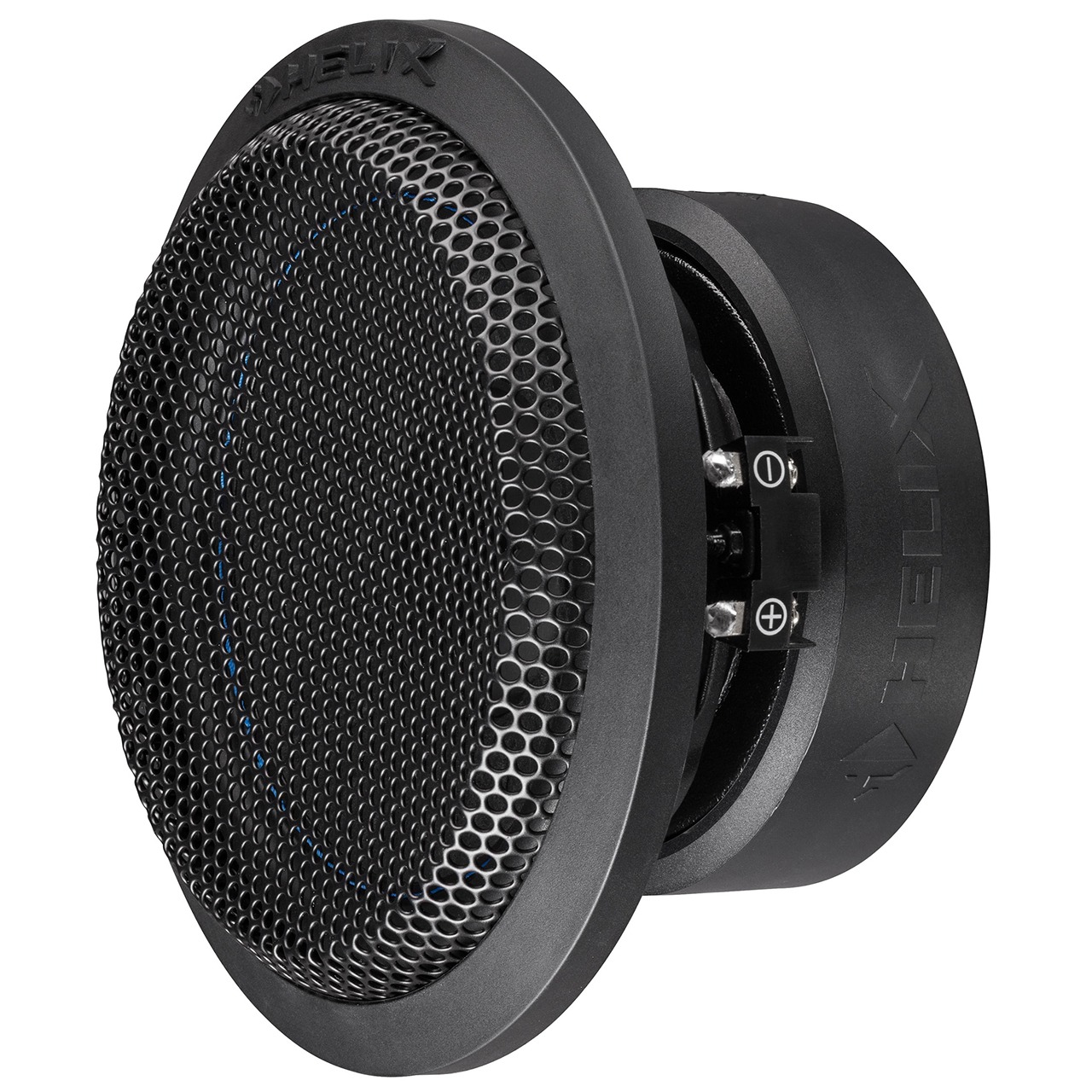

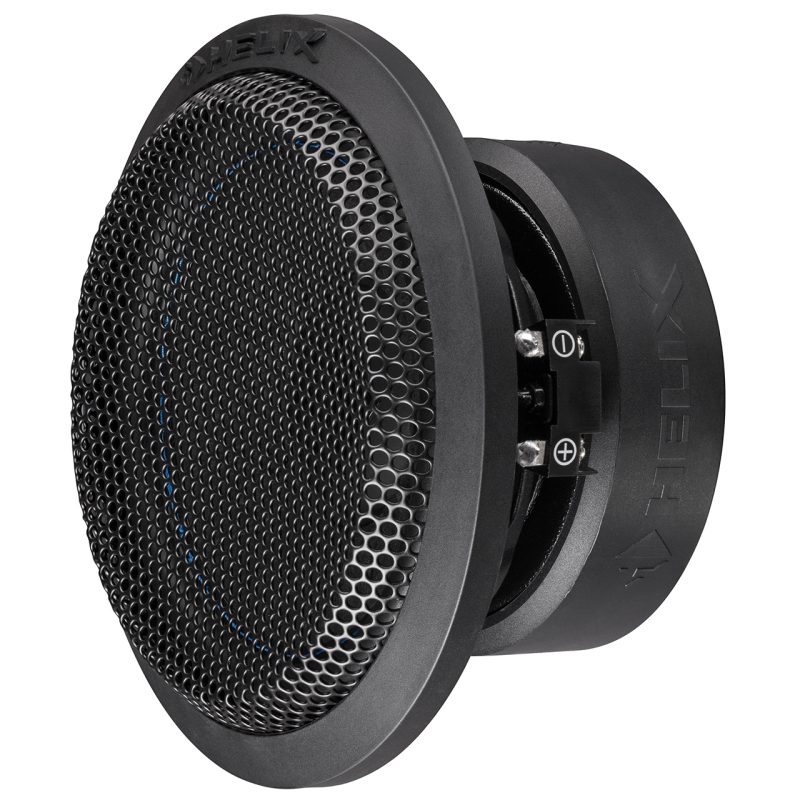

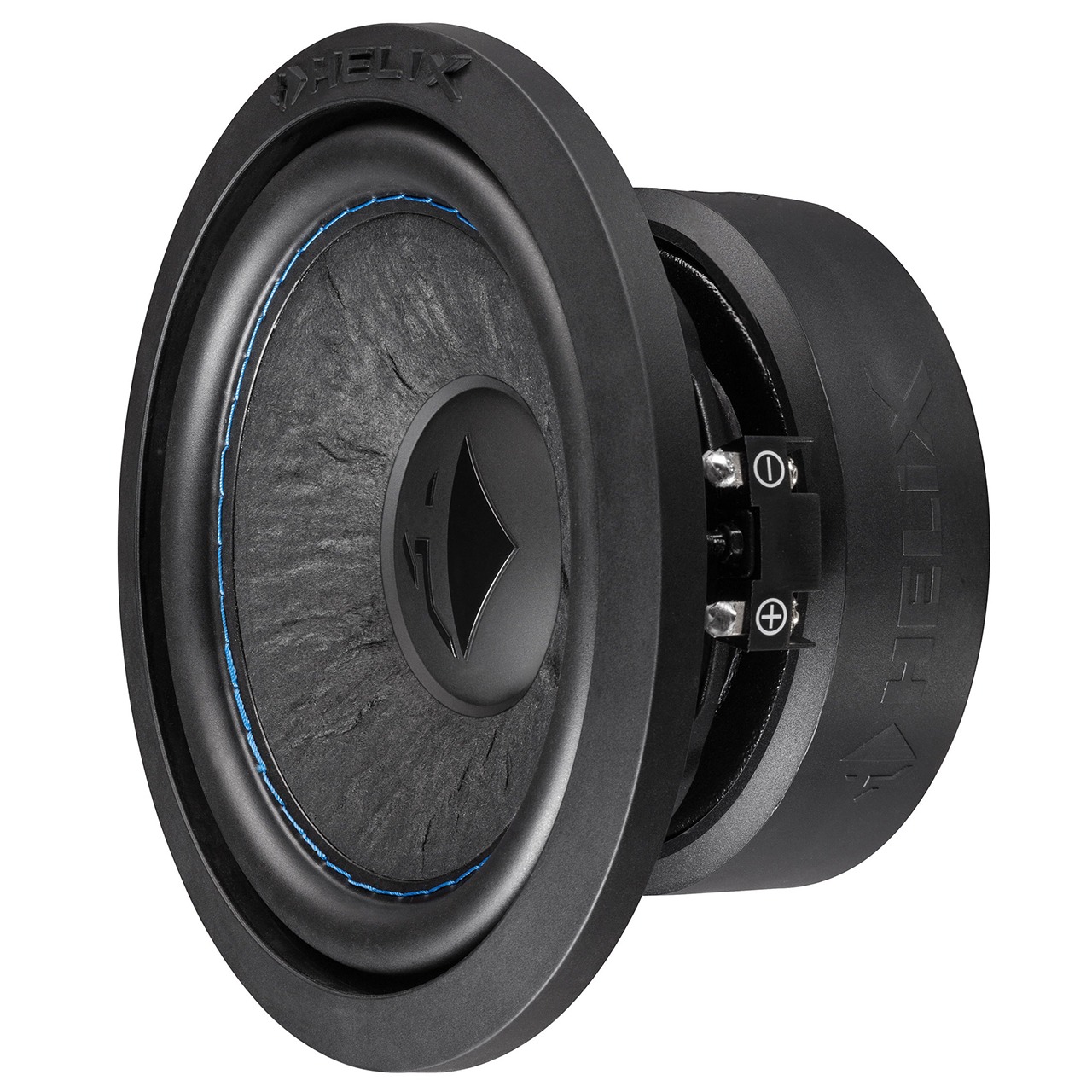

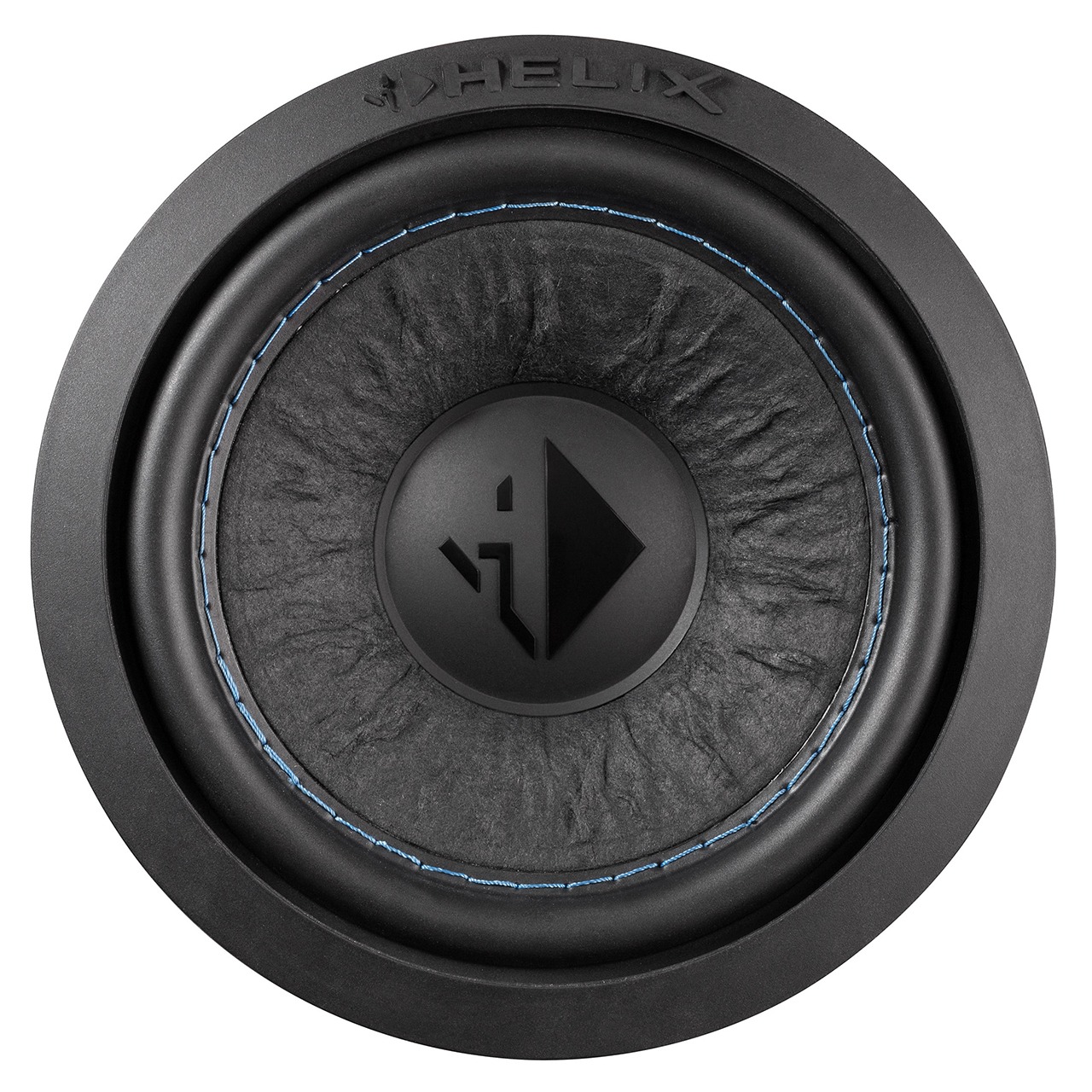

Helix IK W6-DVC2 ( 2x2Ohm )

Helix 6,5″ laadukas subwoofer ( 2x2Ohm )

99.00  sis alv24%

Pyydä tarjous! Pyyntihinta ei ole välttämättä myyntihinta ;)

Varasto loppu

Kuvaus

Helixin IK-sarjan 6,5″ subwooferelementti joka toimii pienessä refleksikotelossa. koteloissa. Elementtiä saa 2×2 Ohmin ja 1×2 Ohmin puhekeloilla. Nämä elementit tarjoavat erittäin hyvää äänenlaatua pienestä tilasta.

Lisätiedot

Paino 2.44 kg (kilogramma)
Tekniset tiedot

Power handling RMS / Max. P 150 / 300 Watt Impedance Z 2 x 2 Ω DC resistance Re 2 x 2.0 Ω Resonance frequency Fs 50 Hz Mechanical Q factor Qms 3.92 Electrical Q factor Qes 0.32 Total Q factor Qts 0.30 Compliance Cms 261 μm/N Equivalent air volume Vas 5.3 L Force factor B*I 12.3 Tm Sensitivity SPL 89.0 dB @ 2.83V / 1m 86.0 dB @ 1W / 1m Cone area Sd 123 cm² Moving mass Mms 37 g Cone material Hand-scooped paper cone Mechanical resistance Rms 3.04 kg/s Voice coil diameter ø 37 mm Voice coil winding height 18 mm Max. linear excursion Xmax +/- 6.0 mm Outer diameter ø 164.2 mm / 6.46" Installation diameter ø 132.5 mm / 5.22" Installation depth 74.3 mm / 2.93" Recommended enclosure Vented box Net volume 7 L Port diameter ø 50 mm Port area 20 cm² Port length 34 cm (angled port) Port tuning frequency Fb 45 Hz Lower limiting frequency (-3dB) 43 Hz Recommended DSP settings Recommended "self-define" highpass filter with 45 Hz cut-off frequency and Q = 1.2 additional EQ filter 80 Hz / Q = 1.0 / +1.0 dB Scope of delivery 1 x Subwoofer HELIX IK W6-DVC2 1 x Grille 1 x Gasket 1 x Data sheet

Power handling RMS / Max. P 150 / 300 Watt
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 2.0 Ω
Resonance frequency Fs 50 Hz
Mechanical Q factor Qms 3.92
Electrical Q factor Qes 0.32
Total Q factor Qts 0.30
Compliance Cms 261 μm/N
Equivalent air volume Vas 5.3 L
Force factor B*I 12.3 Tm
Sensitivity SPL 89.0 dB @ 2.83V / 1m
86.0 dB @ 1W / 1m
Cone area Sd 123 cm²
Moving mass Mms 37 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms 3.04 kg/s
Voice coil diameter ø 37 mm
Voice coil winding height 18 mm
Max. linear excursion Xmax +/- 6.0 mm
Outer diameter ø 164.2 mm / 6.46″
Installation diameter ø 132.5 mm / 5.22″
Installation depth 74.3 mm / 2.93″

Recommended enclosure

Vented box
Net volume 7 L
Port diameter ø 50 mm
Port area 20 cm²
Port length 34 cm (angled port)
Port tuning frequency Fb 45 Hz
Lower limiting frequency (-3dB) 43 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 45 Hz cut-off frequency and Q = 1.2
additional EQ filter 80 Hz / Q = 1.0 / +1.0 dB

Scope of delivery
1 x Subwoofer HELIX IK W6-DVC2
1 x Grille
1 x Gasket
1 x Data sheet
