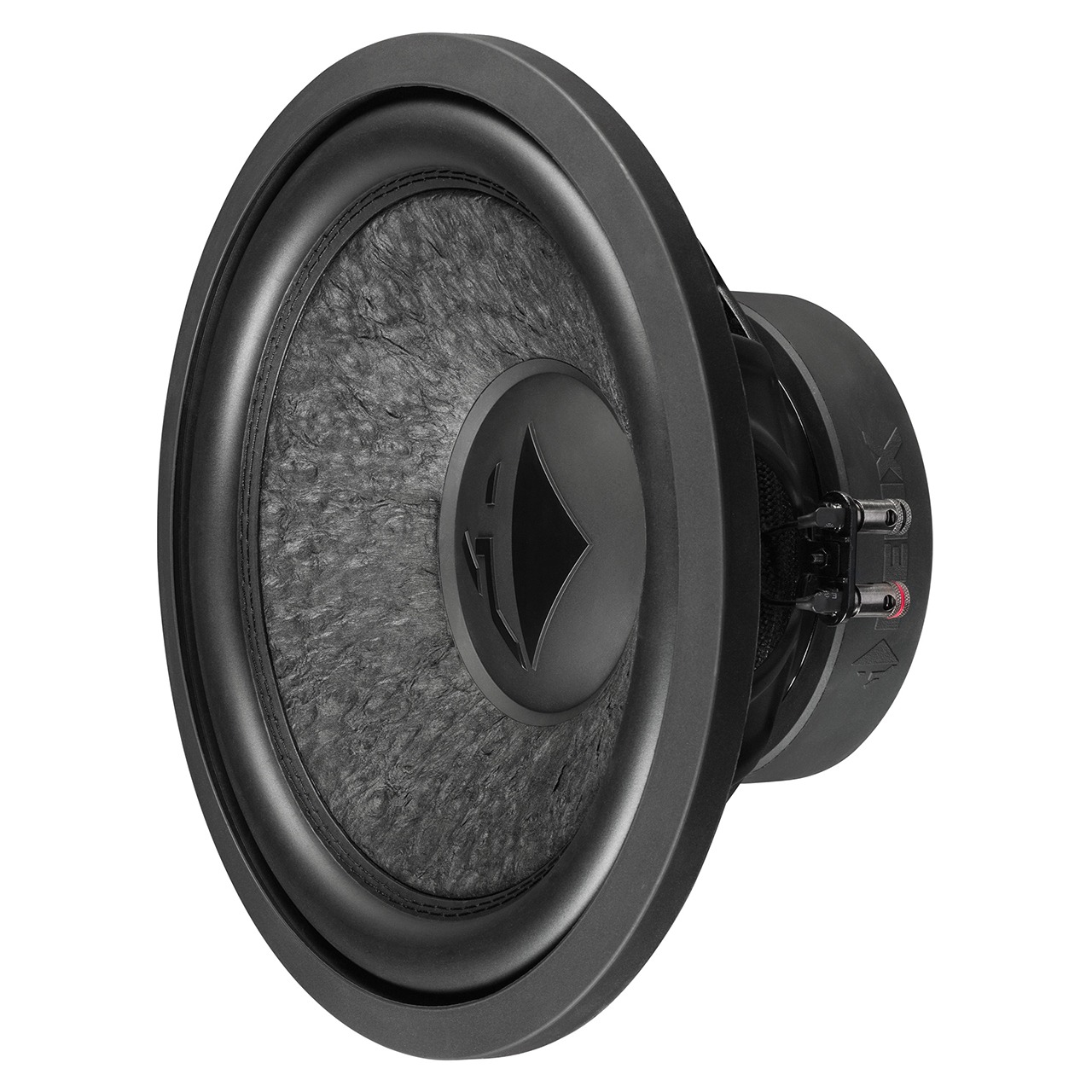

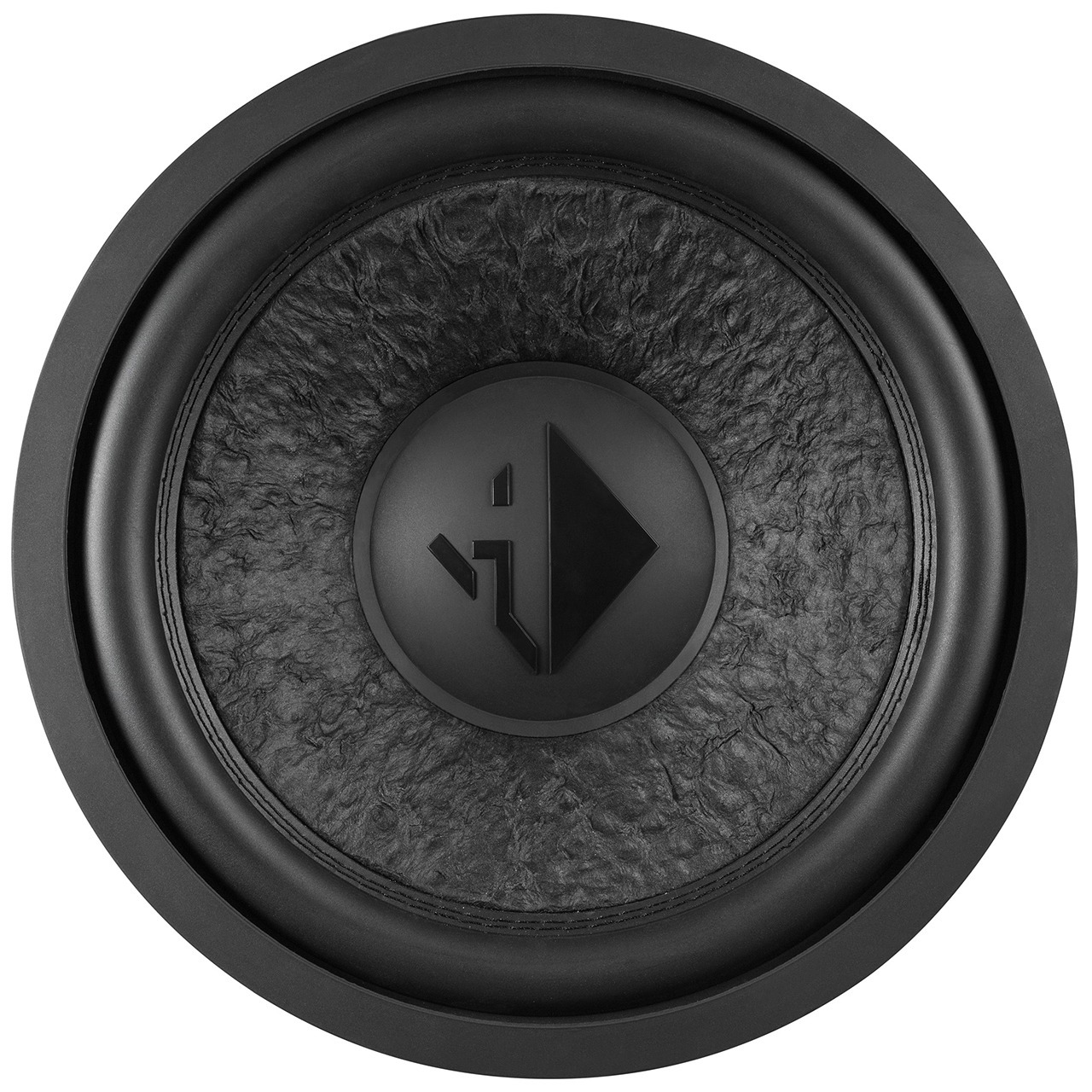

HELIX IK W12-DVC2-2 x 2 Ohm

• 12″ SQ subwoofer
• 600W
• 2 x 2 Ohm
• Jopa 22L suljettuun koteloon!

219.00  sis alv25,5%

Pyydä tarjous! Pyyntihinta ei ole välttämättä myyntihinta ;)

Varastossa

Kuvaus

Täysin uusi IK W12 subwoofer tarjoaa uskomattoman hyvän äänenlaadun, sekä bassotoiston jopa 22L suljetussa kotelossa. Uusi IK -sarja tarjoaa uskomatonta suorituskykyä kompaktissa koossa.

IK W12 subwooferissa on erittäin jäykkä mutta samalla kevyt puristettu paperikartio, joka takaa hyvän herkkyyden mutta kestää kovemassakin käytössä erinomaisesti.

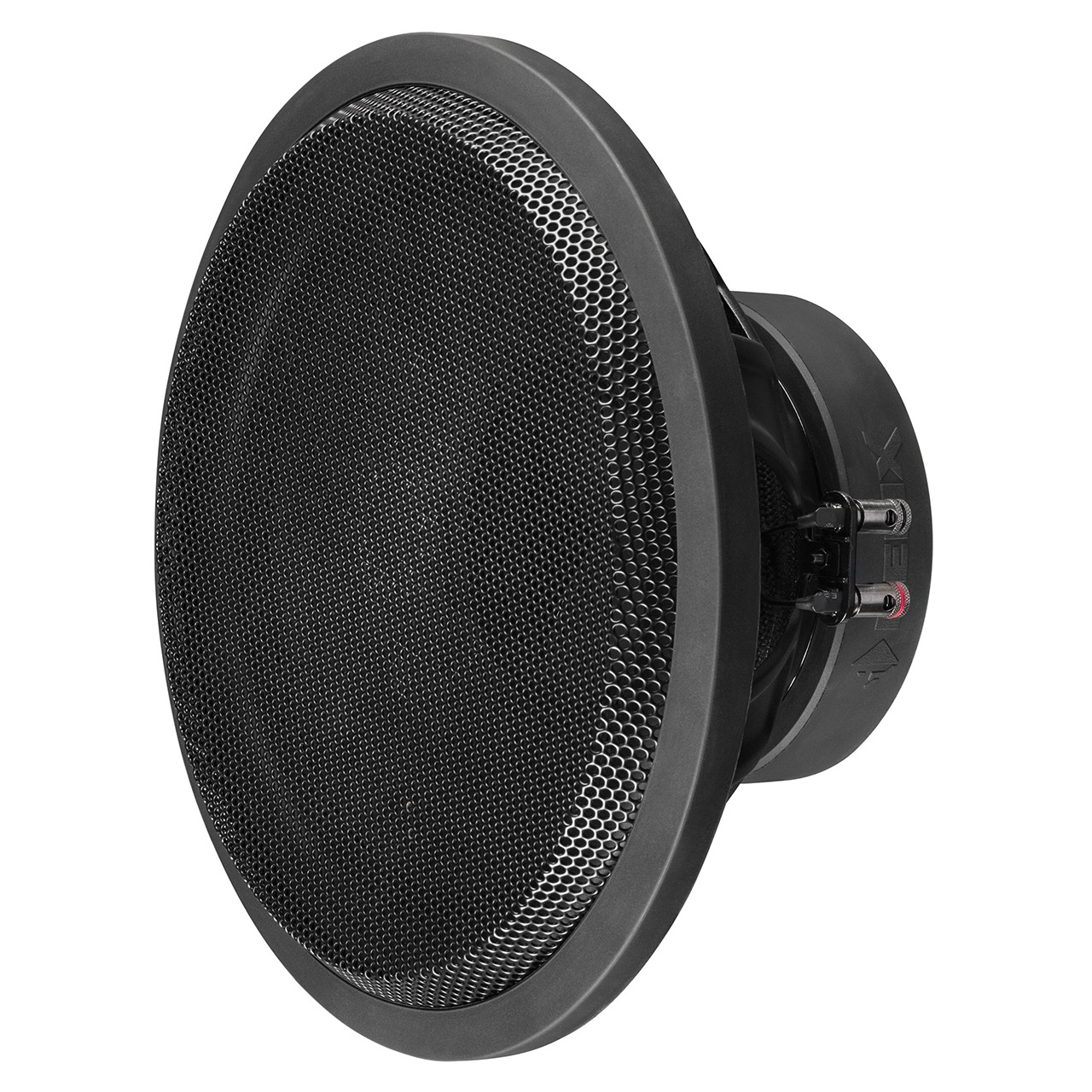

Subwooferin mukana toimitetaan kestävä suojaritilä.

Lisätiedot

Paino 5.68 kg (kilogramma)
Tekniset tiedot

Technical data: IK W12-DVC2 – 2 x 2 Ohms Power handling RMS / max. P 300 / 600 Watt Impedance Z 2 x 2 Ω DC resistance Re 2 x 1.6 Ω Resonance frequency Fs 32 Hz Mechanical Q factor Qms 3.70 Electrical Q factor Qes 0.46 Total Q factor Qts 0.41 Compliance Cms 179 μm/N Equivalent air volume Vas 66 L Force factor B*I 13.7 Tm Sensitivity SPL 93.0 dB @ 2.83V / 1m 90.0 dB @ 1W / 1m Cone area Sd 515 cm² Moving mass Mms 134 g Cone material Hand-scooped paper cone Mechanical resistance Rms 7.33 kg/s Voice coil diameter ø 50.8 mm Voice coil winding height 24 mm Max. linear excursion Xmax +/- 8.0 mm Outer diameter ø 316 mm / 12.44" Installation diameter ø 286 mm / 11.26 Installation depth 144 mm / 5.67" Recommended enclosure volumes Sealed box Net volume 22 L Lower limiting frequency (-3dB) 40 Hz Recommended DSP settings “Self-Define” Highpass: 37 Hz / Q = 1.6 EQ Filter: 90 Hz / Q = 1.5 / -3 dB Vented box Net volume 30 L Port diameter ø 100 mm / 3.94" Port area 78 cm² Port length 28 cm / 9.84" Port tuning frequency Fb 39 Hz Lower limiting frequency (-3dB) 39 Hz Recommended DSP settings “Self-Define” Highpass: 36 Hz / Q = 1.3 EQ Filter: 100 Hz / Q = 0.85 / -2 dB Scope of delivery 1 x Subwoofer HELIX IK W12-DVC2 1 x Grille 1 x Gasket 1 x Data sheet

Technical data:

IK W12-DVC2 – 2 x 2 Ohms
Power handling RMS / max. P 300 / 600 Watt
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.6 Ω
Resonance frequency Fs 32 Hz
Mechanical Q factor Qms 3.70
Electrical Q factor Qes 0.46
Total Q factor Qts 0.41
Compliance Cms 179 μm/N
Equivalent air volume Vas 66 L
Force factor B*I 13.7 Tm
Sensitivity SPL
93.0 dB @ 2.83V / 1m
90.0 dB @ 1W / 1m

Cone area Sd 515 cm²
Moving mass Mms 134 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms 7.33 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44″
Installation diameter ø 286 mm / 11.26
Installation depth 144 mm / 5.67″

Recommended enclosure volumes
Sealed box
Net volume 22 L
Lower limiting frequency (-3dB) 40 Hz
Recommended DSP settings “Self-Define” Highpass: 37 Hz / Q = 1.6
EQ Filter: 90 Hz / Q = 1.5 / -3 dB

Vented box
Net volume 30 L
Port diameter ø 100 mm / 3.94″
Port area 78 cm²
Port length 28 cm / 9.84″
Port tuning frequency Fb 39 Hz
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings “Self-Define” Highpass: 36 Hz / Q = 1.3
EQ Filter: 100 Hz / Q = 0.85 / -2 dB

Scope of delivery
1 x Subwoofer HELIX IK W12-DVC2
1 x Grille
1 x Gasket
1 x Data sheet
