Hifikeidas

Helix CB C130.2-S3 - 3Ohm

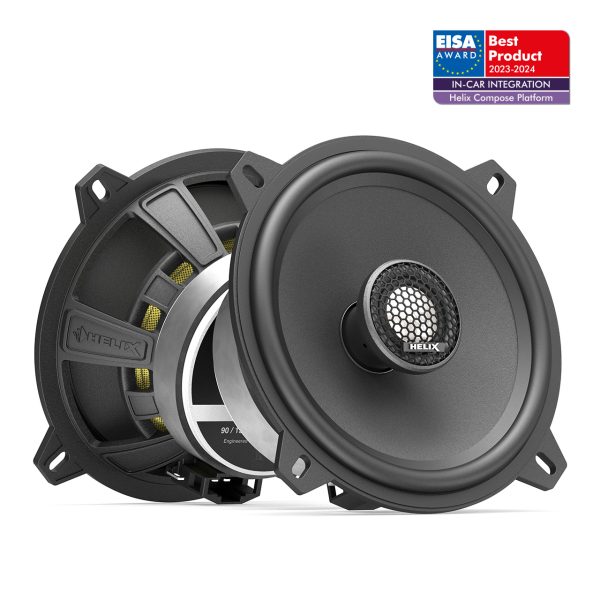

Helix Compose Basic 130mm – 2-tie koaksiaali – 3 Ohm

119.00  sis alv24%

Pyydä tarjous! Pyyntihinta ei ole välttämättä myyntihinta ;)

Vain 3 varastossa

Kuvaus

Helix Compose Basic 130mm / 5,25 – 2-tie koaksiaalikaiutin.

Helix Basic on Compose -sarjan edullisin ja loistavalla hinta- / laatusuhteella varustettu mallisto!

Muiden Compose -mallien tapaan myös Basic on kehitetty autossa paikallaan, jonka ansiosta niiden optimointi on tehty nimenomaan autokäyttöön.

Lisätiedot

Paino 1.5 kg (kilogramma)
Tekniset tiedot

Power handling RMS / Max. P 70 / 105 Watts Frequency response 80 Hz – 22, 000 Hz Impedance Z 3 Ω Sensitivity SPL 90 dB @ 2.83V / 1m 86 dB @ 1W / 1m Outer diameter ø 130.0 mm / 5.12” Installation diameter ø 118.0 mm / 4.65” Installation depth 51.4 mm / 2.02” Midrange Impedance Z 3 Ω DC resistance Re 3.0 Ω Resonance frequency Fs 92 Hz Mechanical Q factor Qms 4.28 Electrical Q factor Qes 1.18 Total Q factor Qts 0.92 Compliance Cms 303 μm/N Equivalent air volume Vas 4.0 L Force factor B*l 3.8 Tm Cone area Sd 97 cm2 Moving mass Mms 9.7 g Mechanical resistance Rms 1.33 kg/s Voice coil diameter ø 25 mm Voice coil winding height 8.9 mm Max. linear excursion Xmax +/- 2.5 mm Tweeter Voice coil diameter ø 20 mm Features Tweeter Silk dome and neodymium magnet Midbass Injected polypropylene cone Crossover Integrated, 6 dB highpass Scope of delivery 2 x CB C130.2-S3 1 x Mounting material

Power handling RMS / Max. P 70 / 105 Watts
Frequency response 80 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 90 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Outer diameter ø 130.0 mm / 5.12”
Installation diameter ø 118.0 mm / 4.65”
Installation depth 51.4 mm / 2.02”

Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 92 Hz
Mechanical Q factor Qms 4.28
Electrical Q factor Qes 1.18
Total Q factor Qts 0.92
Compliance Cms 303 μm/N
Equivalent air volume Vas 4.0 L
Force factor B*l 3.8 Tm
Cone area Sd 97 cm2
Moving mass Mms 9.7 g
Mechanical resistance Rms 1.33 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height

8.9 mm
Max. linear excursion Xmax +/- 2.5 mm

Tweeter
Voice coil diameter ø 20 mm

Features
Tweeter Silk dome and neodymium magnet
Midbass
Injected polypropylene cone

Crossover Integrated, 6 dB highpass

Scope of delivery
2 x CB C130.2-S3
1 x Mounting material
