• 1-kanavainen minivahvistin
• 750W
• Langallinen basson tasonsäädin
• D-luokka
• Kaiutintasoinen sisääntulo
199.00 € sis alv25,5%
Pyydä tarjous! Pyyntihinta ei ole välttämättä myyntihinta ;)
Varastossa

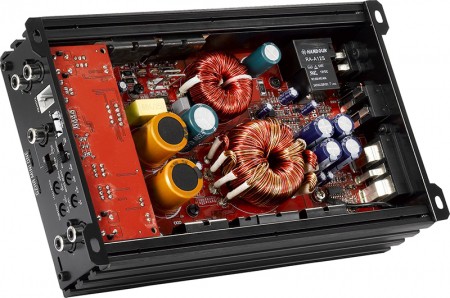

Hydrogen MINI- vahvistimet edustavat viimeisintä D-luokan teknologiaa jota käytetään mm. uusien autojen Premium OEM vahvistinratkaisuissa.
Erona tavalliseen D-luokkalaiseen on huomattavasti parempi äänenlaatu kaikilla osa-alueilla.
Et huomaa sokkokuuntelussa , onko kyseessä laadukas AB-luokan vahvistin vai Hydrogen MINI vahvistin.
Tilaa säästävä ja kokeilemisen arvoinen ratkaisu !
| Paino | 2.374 kg (kilogramma) |
|---|---|
| Tekniset tiedot | High-efficient mono class D amplifier • 1 ohm stable • Variable high pass filter • Variable low pass filter • Phase switch (0°/180°) • Adjustable bass boost (@ 45 Hz) • Stereo RCA input and output • High-level input with auto-on function • Link mode (with 2 units) • Adjustable input sensitivity • Turn-on delay • Thermal protection circuit • Short circuit protection • Overload protection circuit • Owner’s manual enclosed • Wired bass level remote control (GZTA Bassremote) included Amplifier type Mono class D RMS Power @ 4 Ω CEA Standard CEA-2006-A 220 W (1% THD+N) RMS Power @ 2 Ω CEA Standard CEA-2006-A 390 W (1% THD+N) RMS Power @ 1 Ω CEA Standard CEA-2006-A 630 W (1% THD+N) 750 W (10% THD+N) RMS Power @ 2 Ω in linked mode (of two amplifiers) CEA Standard CEA-2006-A 1260 W (1% THD+N) 1500 W (10% THD+N) Damping factor 100 Low pass filter 30 Hz – 250 Hz (12 dB/Oct) High pass filter (Subsonic) 10 Hz – 50 Hz (12 dB/Oct) Band pass filter 10 Hz – 250 Hz (12 dB/Oct) Bass Boost 0 ~ +12 dB (@ 45 Hz) Frequency response 10 Hz – 250 Hz (± 1 dB) Input sensitivity 300 mV – 6 V (± 5%) Bass remote Fuse(s) 2x 30A Dimensions w x h x l (mm) 135 x 52 x 210 Dimensions w x h x l (inch) 5.32 x 2.05 x 8.27. |
High-efficient mono class D amplifier
• 1 ohm stable
• Variable high pass filter
• Variable low pass filter
• Phase switch (0°/180°)
• Adjustable bass boost (@ 45 Hz)
• Stereo RCA input and output
• High-level input with auto-on function
• Link mode (with 2 units)
• Adjustable input sensitivity
• Turn-on delay
• Thermal protection circuit
• Short circuit protection
• Overload protection circuit
• Owner’s manual enclosed
• Wired bass level remote control
(GZTA Bassremote) included
Amplifier type Mono class D
RMS Power @ 4 Ω CEA Standard CEA-2006-A 220 W (1% THD+N)
RMS Power @ 2 Ω CEA Standard CEA-2006-A 390 W (1% THD+N)
RMS Power @ 1 Ω CEA Standard CEA-2006-A 630 W (1% THD+N)
750 W (10% THD+N)
RMS Power @ 2 Ω in linked mode (of two amplifiers)
CEA Standard CEA-2006-A
1260 W (1% THD+N)
1500 W (10% THD+N)
Damping factor 100
Low pass filter 30 Hz – 250 Hz (12 dB/Oct)
High pass filter (Subsonic) 10 Hz – 50 Hz (12 dB/Oct)
Band pass filter 10 Hz – 250 Hz (12 dB/Oct)
Bass Boost 0 ~ +12 dB (@ 45 Hz)
Frequency response 10 Hz – 250 Hz (± 1 dB)
Input sensitivity 300 mV – 6 V (± 5%)
Bass remote
Fuse(s) 2x 30A
Dimensions w x h x l (mm) 135 x 52 x 210
Dimensions w x h x l (inch) 5.32 x 2.05 x 8.27.
