AMPIRE KVX-EXPERT

• Peruutuskamera
• CITROEN Jumpy 3
• FIAT Scudo 3
• Opel Vivaro C
• PEUGEOT Expert 3
• ProAceAce2

159.00  sis alv25,5%

Pyydä tarjous! Pyyntihinta ei ole välttämättä myyntihinta ;)

Vain 2 varastossa

Kuvaus

AMPIRE KVX-EXPERT peruutuskamera

– CITROEN Jumpy 3, Spacetourer vuodesta 2016
– FIAT Scudo 3 vuodesta 2021
– Opel Vivaro C vuodesta 2019
– PEUGEOT Expert 3, Traveller, kukin vuodesta 2016 eteenpäin
– ProAceAce2OTA ProAce2OTA Verso, kukin vuodesta 2016 eteenpäin.

TECHNICAL DATA
- Mirrored image reproduction
- Image sensor: 1/3″ CMOS High performance Digital Super Clarity Image Sensor
- Resolution 756x504 pixels
- Viewing angle 185° diagonal
- Viewing angle 146° horizontal
- Viewing angle 110° vertical
- Picture format: NTSC
- 480 lines resolution
- IP69 waterproof
- Operating voltage: 12 Volt DC
- Power consumption: max. 200mA
- Operating temperature: -20° to 70°C
- Minimum illumination: 0.2 Lux
- Colour: black
- Cable length: 10 metres with 8-PIN mini-DIN connectors
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010 EN 61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008 EN 55024:2010
- FCC Approval ANSI C63.4-2003

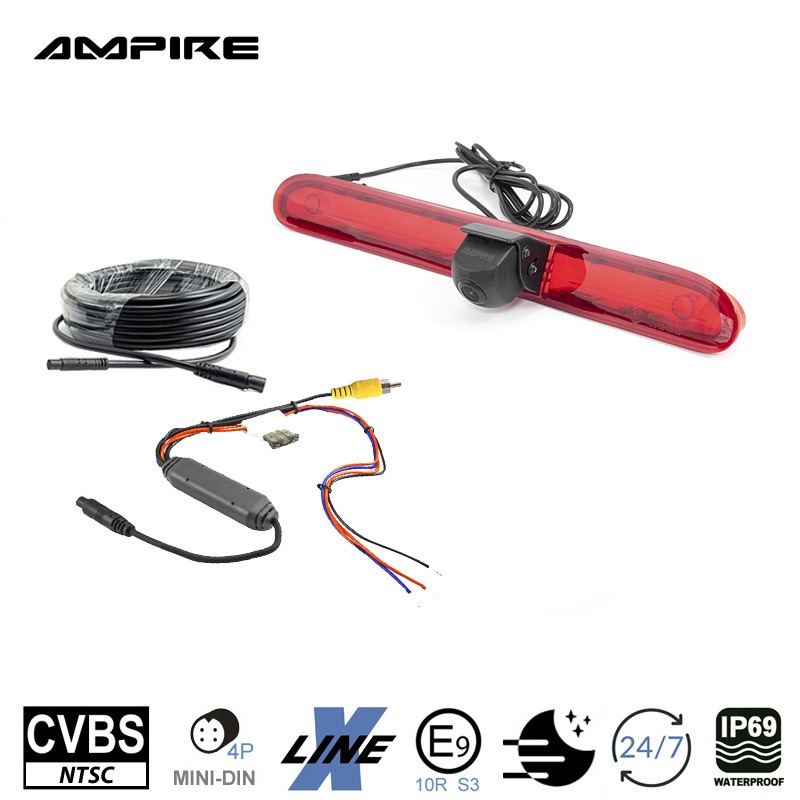

SCOPE OF DELIVERY
- camera
- AK1035 power supply
- AK1034 Mini-DIN extension cable 10m

INSTALLATION NOTE
On some vehicles an optional relay is required to tap the reversing signal.

IMPORTANT NOTE
Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor.

×
